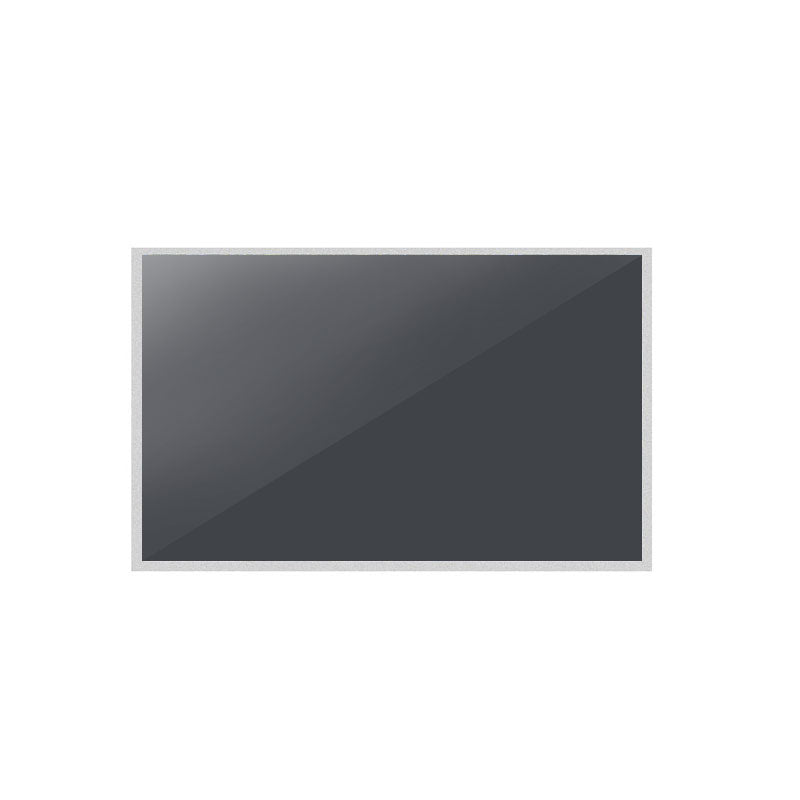

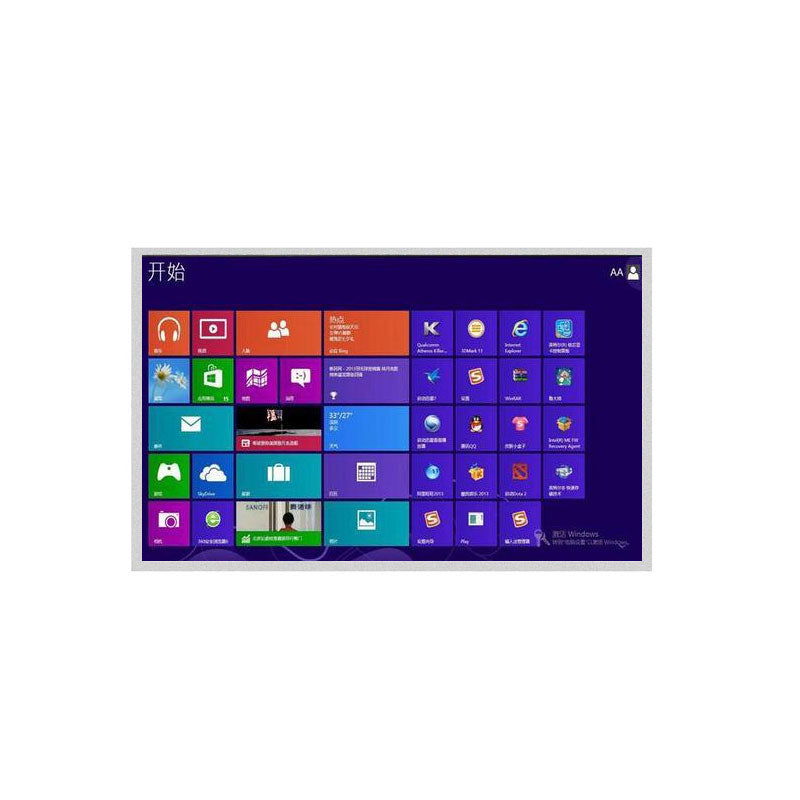

TM150XDHG01 Tianma 15 Inch TFT LCD Display Sunlight Readable 1600×1200 Wide Temperature LCD Panel

TM150XDHG01 Tianma 15 Inch TFT LCD Display Sunlight Readable 1600×1200 Wide Temperature LCD Panel

$420.00 USD
$420.00 USD
销售额 售罄
TM150XDHG01
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.

TM150XDHG01 Overview

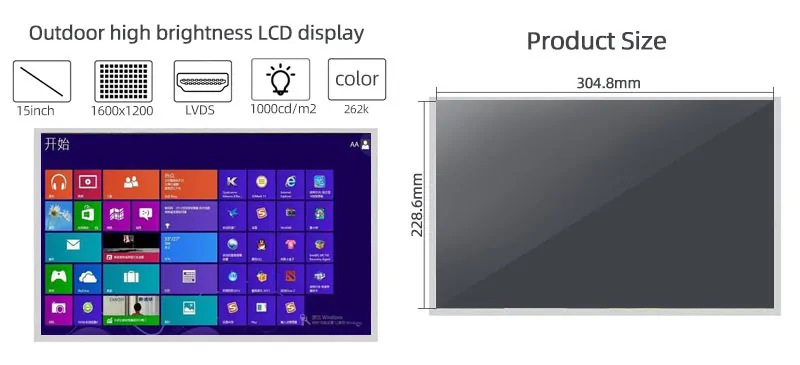

TM150XDHG01 is a 15.0 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, With LED Driver, without touch screen.TM150XDHG01 supports display 1600(RGB)×1200 (UXGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 304.8(W)×228.6(H) mm, outline size of 318.7(W)×242.5(H)×6.5(D) mm, viewing area size of 307.8(W)×231.1(H) mm, with surface treament of Antiglare, net weight of 620g. As a TN, Normally White, Transmissive LCM product, TM150XDHG01 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC).

Feature
IPS
Wide Temperature
Ultra High Brightness 1000cd/m2
WLED Backlight
With LED Driver
Matte

Application
For Outdoor high brightness.


Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
