TV101WXM-NF0 10.1 Inch LCD 800x1280 LCD Display For 3D Printer

TV101WXM-NF0 10.1 Inch LCD 800x1280 LCD Display For 3D Printer

$57.94 USD
$65.00 USD $57.94 USD
Sale Sold out

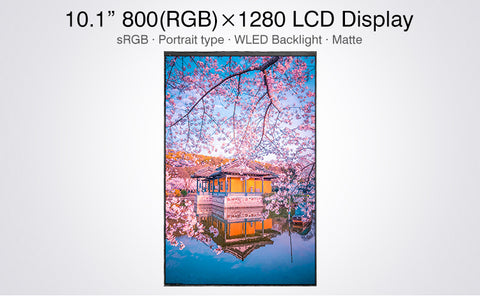

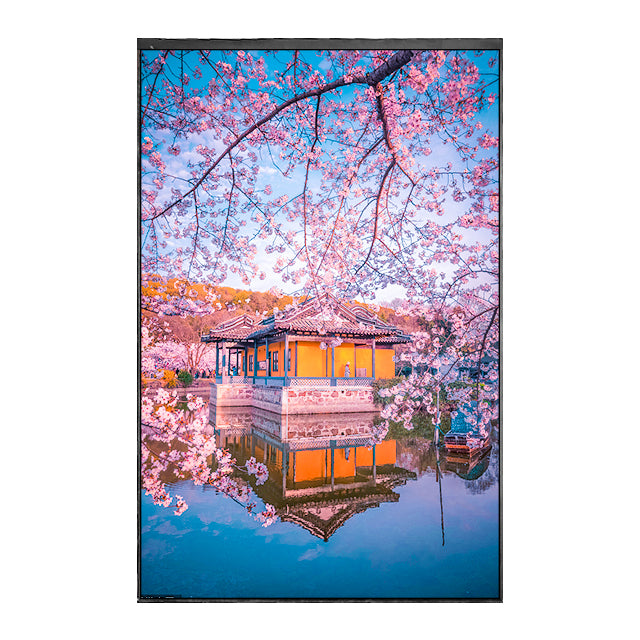

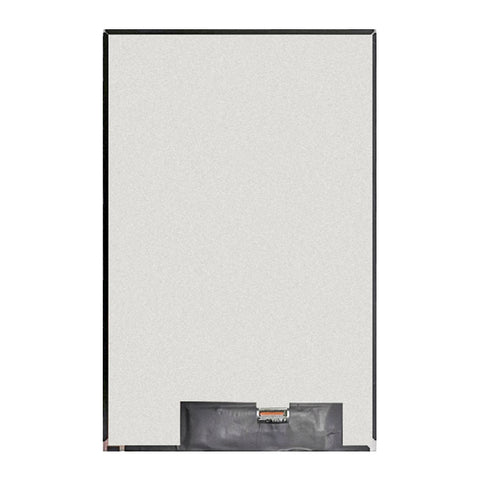

TV101WXM-NF0 Original 10.1 Inch LCD 800x1280 LCD Display For 3D Printer

Product size
10.1-inch
Type
LCM , a-Si TFT-LCD
Pixel Format
800(RGB)×1280 (WXGA) 150PPI
Configuration
RGB Vertical Stripe

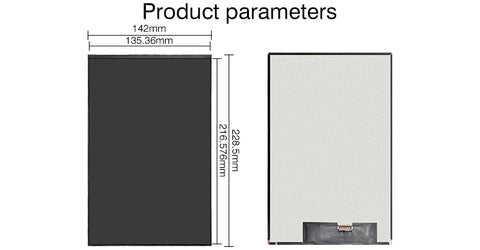

Active Area
135.36 × 216.576 (H×V)
Outline Dim.
142 × 228.5 × 4.5 (H×V×D)
Bezel Area
-
Treatment
Antiglare (Haze 25%)
Luminance
350 cd/m² (Typ.)
Contrast Ratio
1000 : 1 (Typ.) (TM)
View Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
HADS, Normally Black, Transmissive
Support Color
16.7M 99% sRGB
Light Source
8S4P WLED , No Driver
Weight
150g (Typ.)
Designed For
Pad & Tablet
Frequency
60Hz
Touch Panel
Without
Interface Type
MIPI (4 data lanes) , 39 pins Connector
Power Supply
1.8/3.3V (Typ.)(IOVCC/VDD)
Environment
Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 60 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
