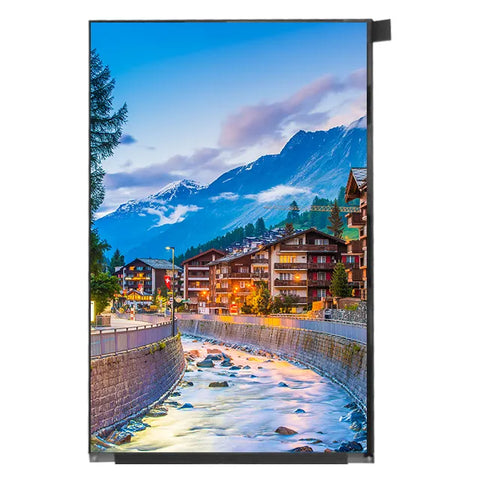

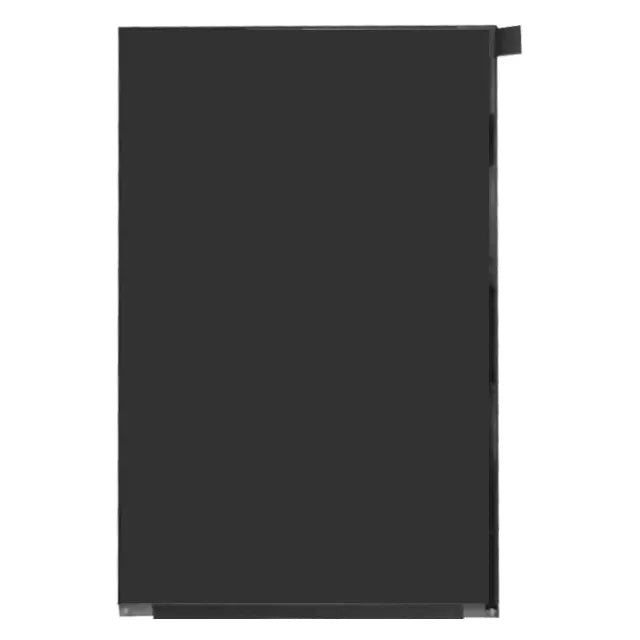

TV108QDM-NH0 10.8 Inch LCD Screen 1600x2560 IPS Screen LCD Display Module

TV108QDM-NH0 10.8 Inch LCD Screen 1600x2560 IPS Screen LCD Display Module

$58.64 USD
$80.00 USD $58.64 USD
Sale Sold out


TV108QDM-NH0 Original 10.8 Inch LCD Screen 1600x2560 IPS Screen LCD Display Module


Product size
10.8-inch
Type
LCM, a-Si TFT-LCD
Pixel Format
1600(RGB)×2560 (WQXGA) 280PPI
Configuration
RGB Vertical Stripe
Active Area
144.72 × 231.552 (H×V)
Outline Dim.
150.62 × 242.652 × 3.7 (H×V×D)
Bezel Area
-
Treatment
Hard coating (3H)
Luminance
380 cd/m² (Typ.)
Contrast Ratio
1000 : 1 (Typ.) (TM)
View Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td); 30 (Typ.)(G to G) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Support Color
16.7M 87% NTSC
Light Source
9S4P WLED , No Driver
Weight
120g (Typ.)
Designed For
Pad & Tablet
Frequency
60Hz
Touch Panel
Without
Interface Type
MIPI (2 ch, 4 data lanes) , Connector 78 pins
Power Supply
1.8/5.8/-5.8V (Typ.)(IOVCC/VSP/VSN)
Environment
Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
