VS021XRM-NW0-6KP0 BOE 2.1 Inch 1600x1600 LCD Display MIPI Interface LCD Panel With Board For HMD AR VR

Overview
VS021XRM-NW0-6KP0 supports display 1600(RGB)×1600 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 1058 PPI. As for mechanical detail, it features active area of 38.4(W)×38.4(H) mm, outline size of 41.2(W)×45.3(H)×1.76(D) mm, with surface treament of Hard coating (3H), net weight of 6.00±1.00g. As a ADS, Normally Black, Transmissive LCM product, VS021XRM-NW0-6KP0 can provides 480 cd/m² display brightness 650:1 transimissive contrast ratio, 40/40/40/40 (Typ.)(CR≥100) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5.5 (Max.)(G to G) ms.

Feature
-IPS Full Viewing Angle
-High contrast
-LCD With HDMI Board
-Brightness:480 cd/m² (Typ.)
-Wide temperature range
-Low power consumption

Screen Size:12.1 inch
Resolution:1600x1600
Brand: BOE
2.1 Inch 1600x1600 LCD Display With Board.

What's included in the package ?

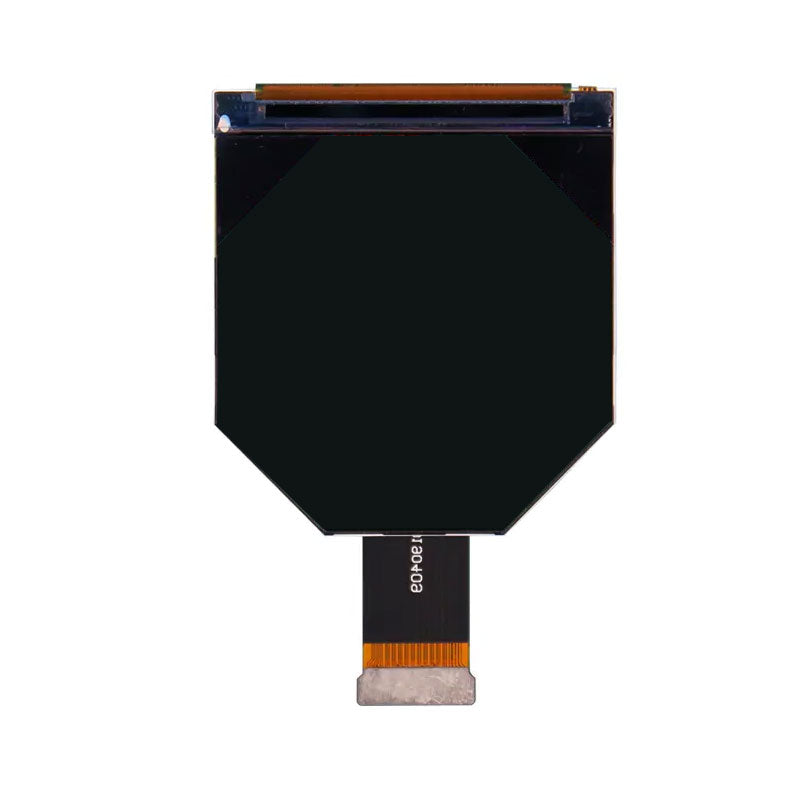

-LCD

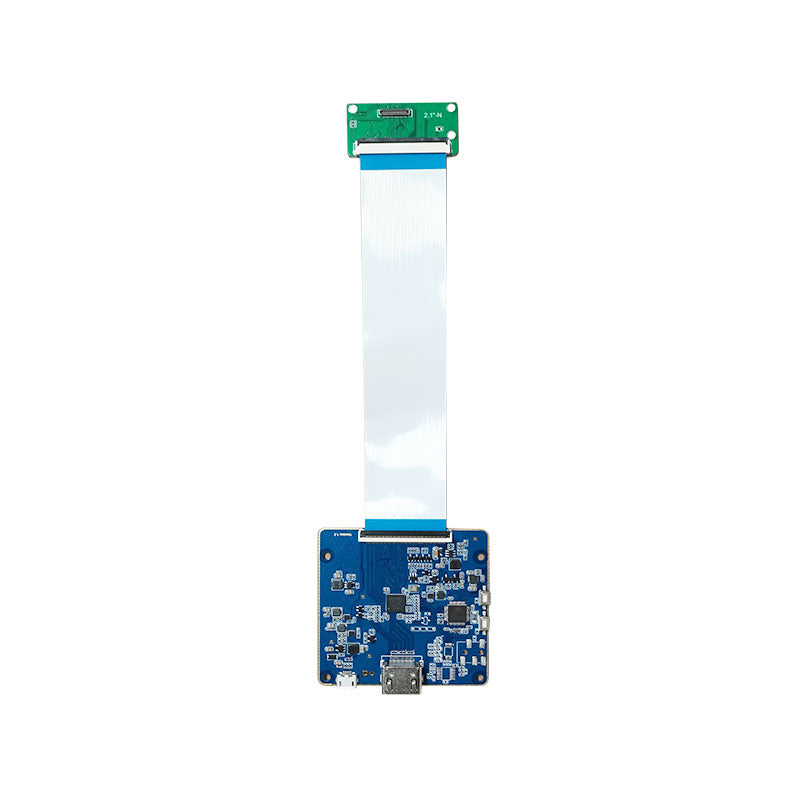

-HDMI board

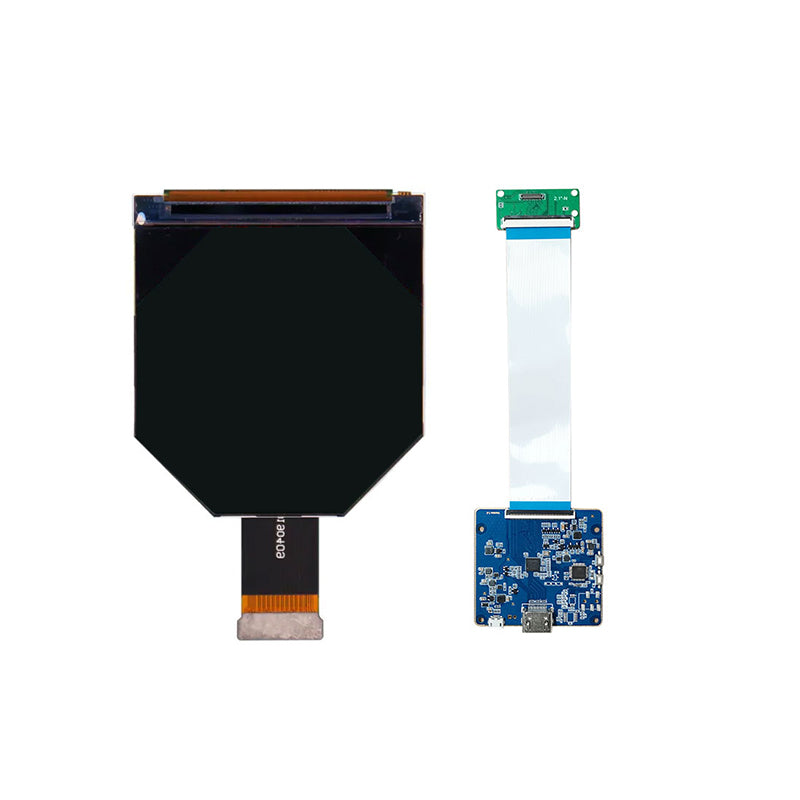

-LCD with HDMI board

Application
Head-mounted Displays, Viewfinders, Small Display,AR VR etc.

Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

More Product Pictures

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.

For inquiries about Youritech and products/solutions, specificaition, mass production quotaion and technical support, welcome to contact us at info@youritech.com
